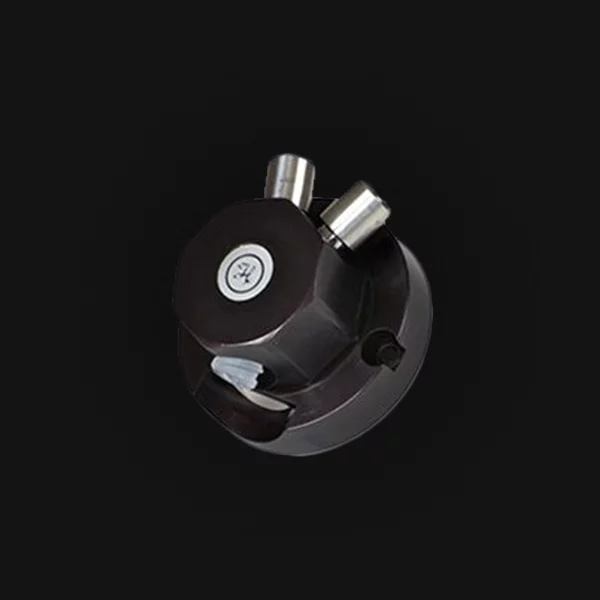

Vape-Jet Valve Assembly



Valve Model 3-2
Valve Model Description “Y” Valve
Fluid Path Ceramic/PTFE
Valve Size HVC
Nominal Port Diameter 0.060 inch (1.5 mm)
Housing Material Aluminum
Actuated Stepper Motor /w Encoder
Break Away Torque 15 oz-in (105.9 mNm)
Panel Mounting No
Thread Depth 0.320 (8.1 mm)
Threaded Connection ΒΌ-28
Operating Pressure 0 to 100 psig (0 to 6.9 bar)
